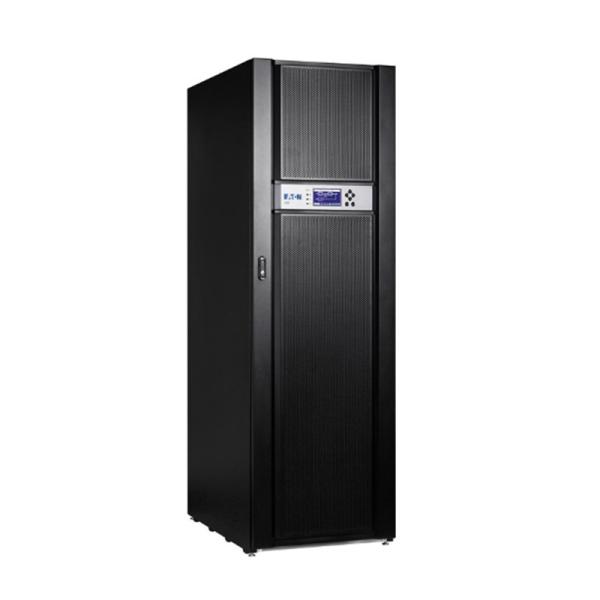

Power

Ratings

80kVA/72kW, 100kVA/90kW, 120kVA/108kW, 160kVA/144kW, 200kVA/180kW, 300kVA/270kW, 400kVA/360kW, 500kVA/450kW 600KVA/500 KW

Topology

Double-conversion online UPS

Electrical Input

Nominal input voltage

400/230V, 4 wire (380/415V selectable)

Input voltage range

-15%, +20% from nominal (400V) at 100% load without depleting battery

Operating frequency

50/60 Hz (40 to 72 Hz)

Input power factor

>0.99 typical

Input current distortion

≤5% THD

Electrical Output

Nominal output voltage

400/230, 4 wire (380/415V selectable)

Output voltage regulation

±1% Static; ±5% dynamic at 100% resistive load change, <20 ms response time

Battery

Battery

192 to 240 Cells (Continual selectable for 15-80kVA)

216/222/228/234/240 Cells (Selectable for 100-500kVA)

Charging method

ABM Cyclic Charging

Efficiency

>98% High-efficiency mode (15-80kVA)

>98.5% High-efficiency mode (100-300kVA)

>99% High-efficiency mode (400-500kVA)

>94% Double-conversion mode (15-300kVA)

>95% Double-conversion mode (400-500kVA)

UPS bypass

Automatic on overload or UPS failure

Parallel technology

Power ware Hot Sync® Technology

Dimensions W x D x H

500 x 710 x 960 (mm) 15-20kVA (with internal battery)
500 x 710 x 1230 (mm) 30kVA (with internal battery)
500 x 710 x 1500 (mm) 40kVA (with internal battery)
600 x 800 x 1876 (mm) 60-200kVA
1600 x 820 x 1880 (mm) 300/500kVA

Cabinet rating

IP20 with standard washable dust filters

Weights without internal battery

15/20kVA-72kg, 30kVA-88kg, 40kVA-120kg,

60kVA-202kg, 80kVA-245kg, 100kVA-283kg,

120kVA-311kg, 160/200kVA-457kg,

300kVA-860kg, 400kVA-970kg, 500kVA-1020kg

Weights with internal battery

15/20kVA-272kg, 30kVA-376kg, 40kVA-490kg

Overload

150% for 1 minute, 125% for 10 minutes, >150% for 150ms

Communications

Display

Graphical LCD with blue backlight

LEDs

(4) LEDs for notice and alarm

Audible alarms

Yes

Communication ports

(1) RS-232, (1) USB, (1) EPO
