3 Phase Galaxy PW UPS 2nd Gen 30kVA 220VAC - 384VDC With LCD Display

    Buy cheap 3 Phase Galaxy PW UPS 2nd Gen 30kVA 220VAC - 384VDC With LCD Display from wholesalers

    Buy cheap 3 Phase Galaxy PW UPS 2nd Gen 30kVA 220VAC - 384VDC With LCD Display from wholesalers
    • Buy cheap 3 Phase Galaxy PW UPS 2nd Gen 30kVA 220VAC - 384VDC With LCD Display from wholesalers
    • Buy cheap 3 Phase Galaxy PW UPS 2nd Gen 30kVA 220VAC - 384VDC With LCD Display from wholesalers

    3 Phase Galaxy PW UPS 2nd Gen 30kVA 220VAC - 384VDC With LCD Display

    Ask Lasest Price
    Brand Name : APC
    Model Number : EPWUPS30KU6PS
    Certification : CE EAC RCM
    Payment Terms : L/C, D/A, D/P, T/T
    • Product Details
    • Company Profile

    3 Phase Galaxy PW UPS 2nd Gen 30kVA 220VAC - 384VDC With LCD Display

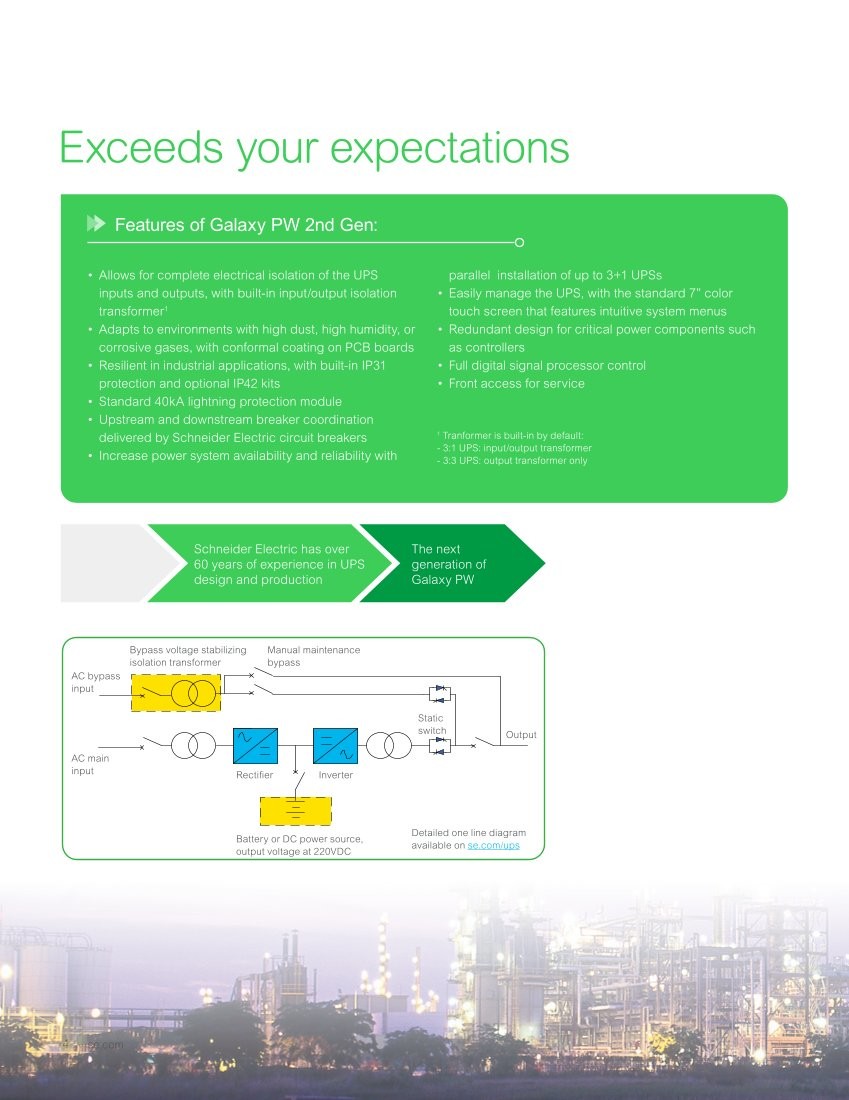

    Features

    The Galaxy PW second-generation uninterruptible power supply (UPS) is a UPS designed for industrial applications, with DC voltages ranging from 220VDC to 384VDC. It uses reliable 6-pulse or 12 pulse SCR rectifiers. The Galaxy PW second-generation UPS is based on Schneider Electric's over 35 years of experience in the UPS industry, as well as advanced control and power electronics conversion technology, optimized for reliability

    The rectifier adopts 6P or 12P thyristor rectification
    *Supports dual input
    *Standard 40kA TVSS
    *Standard Schneider switch
    *Input voltage range: 304-456V
    *DC voltage: 384VDC
    *Overload capacity: 125% for 10 minutes; 150% for 1 minute
    *Machine standard configuration output isolation transformer

    Benefits

    *Standard built-in output isolation transformer
    *Standard protection level IP31, optional IP42
    *Working temperature 0-50 ℃
    *Standard lightning protection module
    *Support DC cold start

    Application Scenarios

    *Petroleum, Petrochemical and Natural Gas
    *Metallurgy
    *Power plant
    *Medical
    *Semiconductor
    *Airport
    *Food and Beverage
    *Maritime Affairs
    *Mining
    *Data center


    Overview
    PresentationTransformer-based 30 kVA 3-phase input, single-phase output UPS with 6-pulse SCR technology and a 384 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5x8 start-up service.
    Lead timeSpecial Order - Call for Quoted Lead Times

    Main
    Main Input Voltage380 V 3 phases
    400 V 3 phases
    415 V 3 phases
    440 V 3 phases
    480 V 3 phases
    Main Output Voltage380 V 3 phases
    400 V 3 phases
    415 V 3 phases
    440 V 3 phases
    480 V 3 phases
    Other Output Voltage220/230/240 V
    Rated power in W24 kW
    Rated power in VA30 kVA
    Battery typeLi-Ion (Lithium-Ion)
    VRLA
    Ni-Cd (Nickel-Cadmium)

    Batteries & Runtime
    EfficiencyView Efficiency Graph
    action_new_window
    Discharge battery voltage384 V

    General
    Number of power module10
    RedundantNo

    Physical
    ColourLight gray
    height180 cm
    Width80 cm
    Depth80 cm
    Net weight491kg

    Input
    Network frequency45...55 Hz
    Max short time withstand current28 kA
    Maximum withstand short-circuit current (Icw)10 kA
    Lnput protection typeCircuit breaker

    Output
    Maximum configurable power in W24 kW
    谐波失真< 2%
    Output frequency (synchronized with the main frequency)50 Hz +/- 1 %
    Wave typeSine wave
    Output voltage tolerance+/- 1 %
    Output voltage THD< 2% linear load and < 4% non-linear load
    Overload operation125% 10Min ,150% 60 Sec
    Maximum configurable power in VA30 kVA

    Conformance
    StandardsIEC62040-3
    IEC 62040-1-1
    IEC 62040-2
    IEC 62040-4
    ISTA 2B)
    product certificationsCE

    Environmental
    ambient air temperature for operation0…40 °C
    Relative humidity0…95 % non-condensing
    Operating altitude0...2000 m
    Ambient air temperature for storage-25…55 °C
    Storage Relative Humidity10…80 % non-condensing
    Storage height0…10000 m
    Sound level70 dB/1m
    Heat dissipation2798 Btu/h
    IPIP degree of protectionIP31

    Communications & Management
    control panelTouch screen LCD user interface

    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height2145 mm
    Package 1 Width1100 mm
    Package 1 Length950 mm
    Package 1 Weight992 kg

    Contractual warranty
    Warranty1 year on-site repair or replace with factory authorized Start-Up
