APC Easy UPS On Line 1kW-10kW Tower 230V Hard Wire 3-Wire(1P+N+E) Outlet

Brand Name :

APC

Model Number :

Easy UPS On-Line

Certification :

Delivery Time :

10days

Payment Terms :

T/T, Western Union, MoneyGram

APC Easy UPS On Line 1kW-10kW Tower 230V Hard Wire 3-Wire(1P+N+E) Outlet

Product Description:

Features

For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.

Benefits

Availability

Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.

Features

USB connection - Use your PC to access additional power protection and management features for your UPS via a USB Port.
Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Management Software - Allows you to easily monitor your utility power and manage your UPS.
ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring. - Management Software
Input Power Factor Correction - Minimizes installation costs by enabling the use of smaller generators and cabling.
High efficiency - High efficiency rates that remain stable even at lower operating power levels
Double conversion on-line topology - Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Wide input voltage range - Designed for harsh electrical environments to save battery life.
Generator compatible - Ensures clean, uninterrupted power to protected equipment when generator power is used.

Manageability

LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
SmartSlot - Customize UPS capabilities with management cards.
Network manageable - Provides remote power management of the UPS over the network.
Serial connectivity - Provides management of the UPS via a serial port.
LED Indicators - Provide easy-to-read status of the unit and utility power conditions.

Serviceability

Audible alarms - Provides notification of changing utility power and UPS power conditions
Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predictive failure notification. - Provides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notification - Warns when a battery is not available to provide backup power.

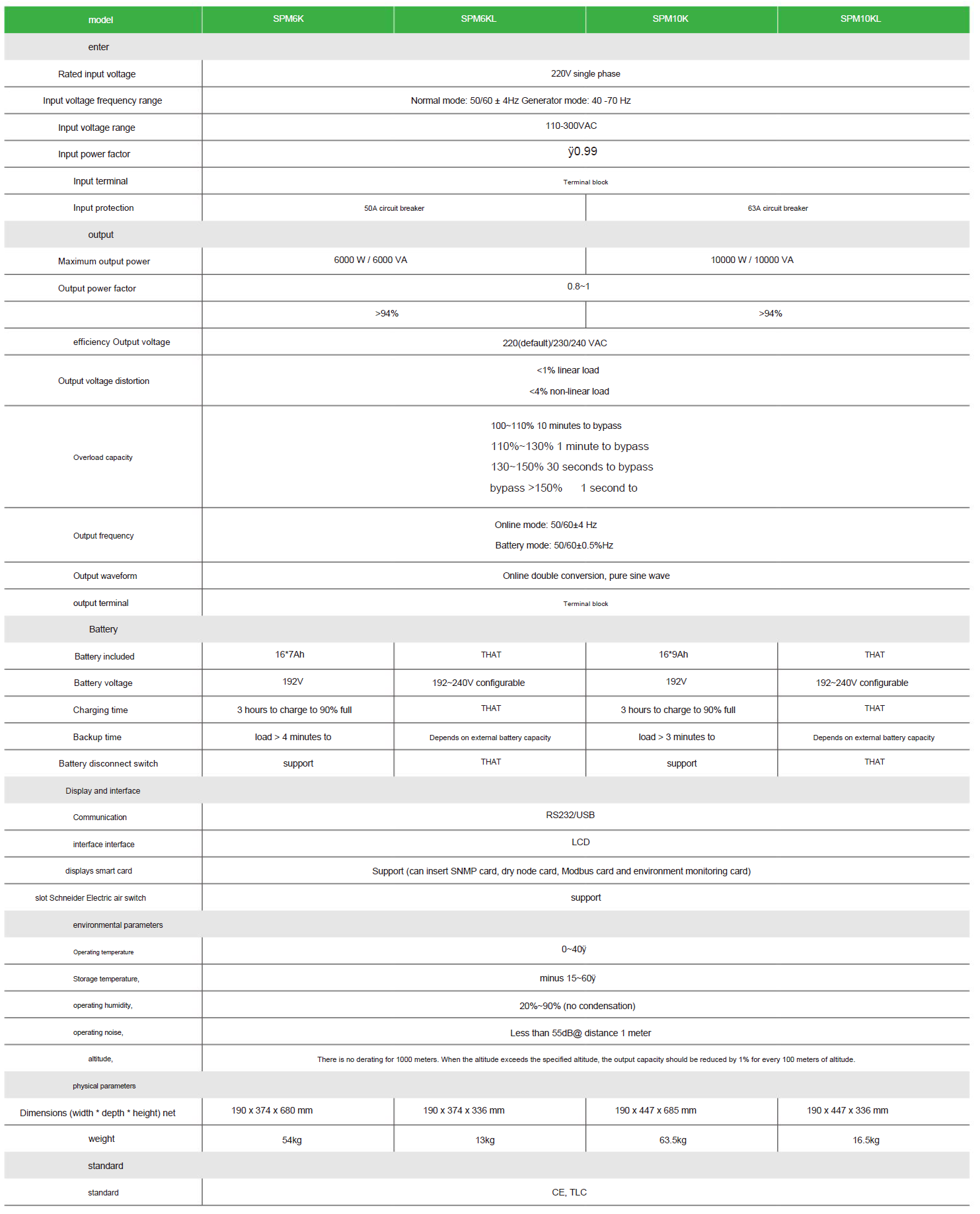

Technical Parameters:

Overview
Presentation	High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time	Usually in Stock
Main
Run time for load	6min 49s
Min-max: 800-20000 W
Max. Capacity Used	100%
Main Input Voltage	230 V
Product or component type	Uninterruptible power supply (UPS)
Other Input Voltage	220 V
	240 V
Main Output Voltage	230 V
Other Output Voltage	220 V
	240 V
Rated power in W	6000 W
Rated power in VA	6000 VA
Output connector type	Hard wire 3-wire (1P + N + E) 1
Provided equipment	1 USB cable
	1 RS-232 configuration cable
	1 external battery pack
	1 battery cable
	1 user manual
Batteries & Runtime
Run Time	View Runtime Graph
	action_new_window
Efficiency	View Efficiency Graph
	action_new_window
Battery type	Lead-acid battery
Battery voltage	240 V
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	5 h
Battery life	3…5 year(s)
Battery charger power	1170 W rated
General
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Physical
Colour	Black (RAL 7010)
height	36.8 cm
Width	38 cm
Depth	48.5 cm
Net weight	73 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Not rack-mountable
USB compatible	Yes
Mounting position	Vertical
Input
Input voltage limits	110...300 V 60 % load
	176...300 V full load
Number of input connectors	1 hard wire 3-wire (1P + N + E)
Network frequency	40...70 Hz auto sensing
Output
Maximum configurable power in VA	6000 VA
Maximum configurable power in W	6000 W
Output frequency	50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion	1%
UPS type	Double conversion online
Wave type	Sine wave
Efficiency	94 % (full load)
Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Bypass type	Internal bypass (automatic and manual)
Crest factor	03:01
Conformance
product certifications	CE
	UKCA
	EAC
	TISI
Standards	EN/IEC 62040-1:2019/A11:2021
	EN/IEC 62040-2:2006/AC:2006
	EN/IEC 62040-2:2018
Environmental
ambient air temperature for operation	0…40 °C
Relative humidity	0…95 % non-condensing
Operating altitude	0...3000 m
Ambient air temperature for storage	-15…60 °C
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0…15000 m
Acoustic level	55 dBA
heat dissipation	1172 Btu/h
IP degree of protection	IP20
Communications & Management
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off	Yes
Free slots	1
control panel	Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate	600 J
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	46 cm
Package 1 Width	57 cm
Package 1 Length	58 cm
Package 1 Weight	79 kg
Contractual warranty
Warranty	2 years repair or replace
