APC Smart UPS C 3000VA LCD 230V SMC3000I-CH Double Conversion Online

Brand Name :

APC

Model Number :

SMC3000I-CH

Certification :

CE, IEC 60950-1, EN50091-1-1, VDE

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time :

10days

APC Smart UPS C 3000VA LCD 230V SMC3000I-CH Double Conversion Online

Features

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.

Benefits

Availability

Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning - Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.

Manageability

Audible alarms - Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators - Quickly understand unit and power status with visual indicators.
Network manageable - Provides remote power management of the UPS over the network.
Serial connectivity - Provides management of the UPS via a serial port.
USB connectivity - Provides management of the UPS via a USB port (not available on all models).

Adaptability

Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Serviceability

Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification - Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers - Enables a quick recovery from overload events.
User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Safety

Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

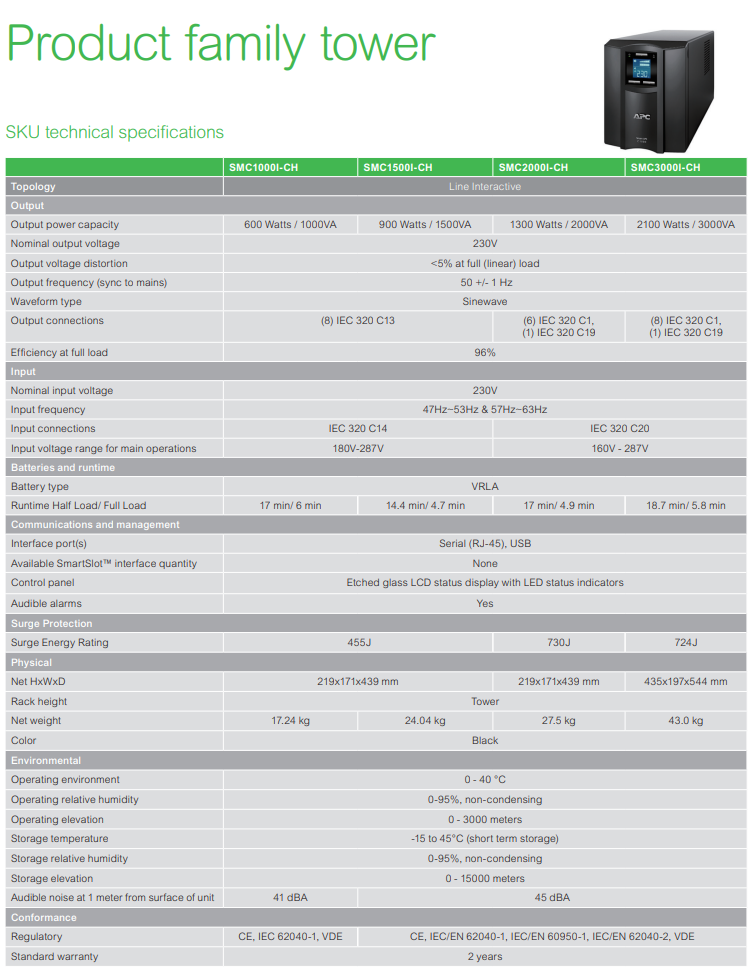

Overview
Presentation	Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time	Usually Ships within 2 Weeks

Main
Run time for load W	5min 47s
Max. Capacity Used information_stroke	100 %
Main Input Voltage	230 V
Other Input Voltage	220 V 240 V
Main Output Voltage	230 V
Rated power in W	2100 W
Rated power in VA	3000 VA
Product or component type	Uninterruptible power supply (UPS)
Input Connection Type	IEC 320 C20
output connection type	8 IEC 320 C13 1 IEC 320 C19
Number of rack unit	0U
Battery type	Lead-acid battery
Provided equipment	CD with software Documentation CD USB cable

Batteries & Runtime
Run Time	View Runtime Graph action_new_window
Extended runtime	0
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	3 h
Number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	APCRBC150 action_new_window
Battery charger power	183 W rated

General
Number of power module filled slots	0
Number of power module free slots	0
product web sub-family	Entry level
Redundant	No

Physical
Colour	Black
height	43.5 cm
Width	19.7 cm
Depth	54.4 cm
Net weight	43 kg
Mounting location	Front
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	Yes

Input
Input voltage limits	170...300 V adjustable 180...287 V
Network frequency	47...63 Hz

Output
Harmonic distortion	Less than 5 % at full load
Maximum configurable power in VA	3000 VA
Maximum configurable power in W	2100 W
UPS type	Line interactive
Wave type	Sine wave
Output frequency	50 Hz sync to mains

Conformance
product certifications	C-Tick CE EAC GOST SABS VDE
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Environmental
Acoustic level	45 dBA
heat dissipation	135 Btu/h
Operating altitude	0...10000 ft
ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0.00…15240.00 m
Relative humidity	0…95 %
Storage Relative Humidity	0…95 %

Communications & Management

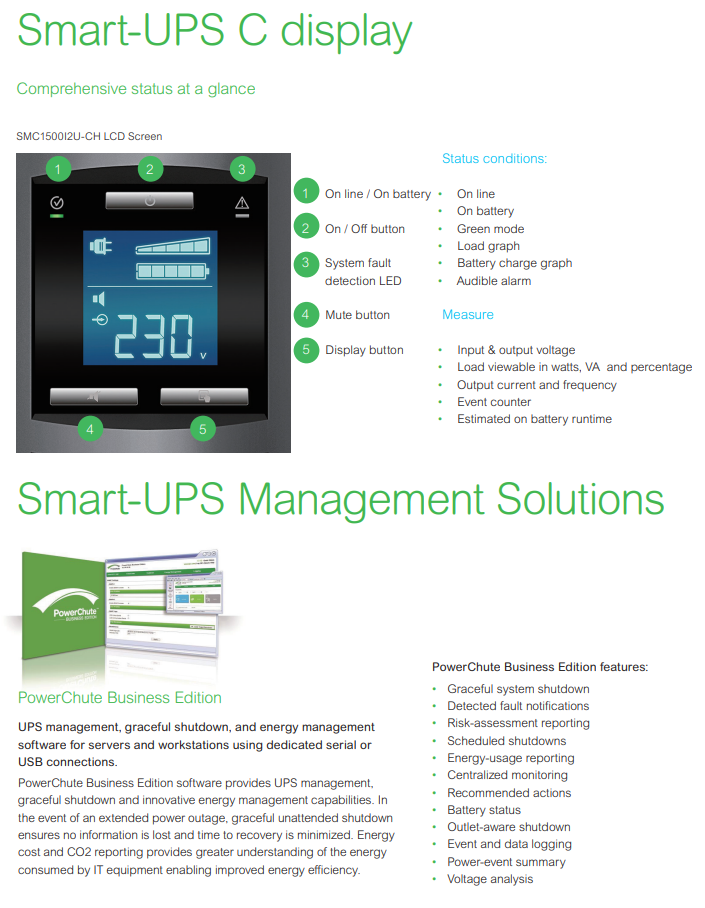

control panel	Multifunction LCD status and control console
Free slots	0
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering
Surge energy rate	300 J
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	76.2 cm
Package 1 Width	69.9 cm
Package 1 Length	38.1 cm
Package 1 Weight	51 kg

Contractual warranty
Warranty	2 years repair or replace
