APC Smart UPS On Line 8kVA 8kW 230V Compact High Density SURT8000XLI

Ask Lasest Price
Brand Name :	APC
Model Number :	SURT8000XLI-CH
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T

Add to Cart

Product Details
Company Profile

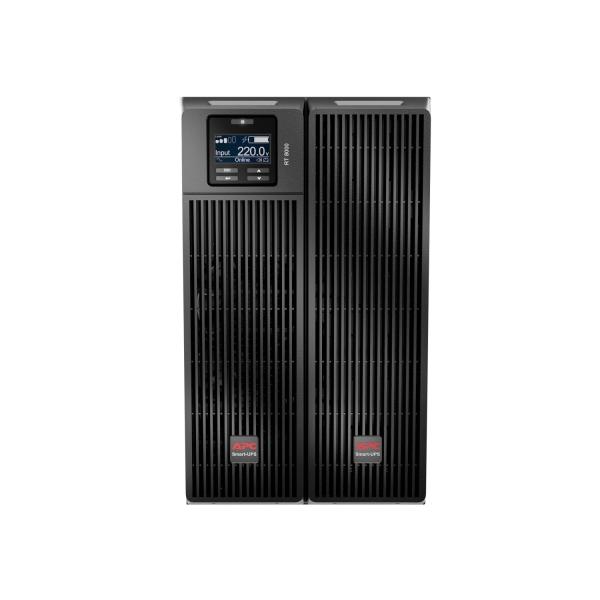

APC Smart UPS On Line 8kVA 8kW 230V Compact High Density SURT8000XLI

Discover Smart-UPS On-Line

Industry-Leading Power Protection

A compact, high-density UPS for servers, voice and data networks, medical labs and light industrial applications. Double-conversion On-Line technology provides consistent, clean power and helps protect your IT equipment at the most critical moments.

Benefits of Smart-UPS On-Line

APC Smart UPS On Line 8kVA 8kW 230V Compact High Density SURT8000XLI

Industry-leading protection

High density, double-conversion On-Line power protection delivers clean power with zero transfer time, and helps guard your critical electronics and data against dangerous power conditions and disturbances.

Reliable source of uninterrupted power

Provides a reliable source of uninterrupted power even in the most demanding power environments, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

More runtime for business continuity

Designed with the ability to meet aggressive runtime requirements, Smart-UPS On-Line can be configured with multiple live swappable battery packs that not only enable extended runtime but can be replaced without powering down.

Adaptability

Rack/Tower convertible - Rack-mount and tower installation options enable flexible setup.
Extended runtime external battery options - Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Manageability

Serial connectivity - Provides management of the UPS via a serial port.
SmartSlot and/or Embedded NMC - Customize UPS capabilities with management cards.
EcoStruxure Ready - Provides remote UPS monitoring and management options.
LED status indicators and audible alarms - Quickly understand unit and power status with visual and audible indicators.

Availability

Automatic internal bypass - Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
Live-swap capable - Add or swap batteries without interrupting the UPS load.
Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.

Protection

Frequency and voltage regulation - Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Safety-agency approved - Ensures the product has been tested and approved to work with the connected service provider equipment and within the specified environment.
Resettable circuit breaker - Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Cold-start capable - Provides temporary battery power when the utility power is out.

Serviceability

Disconnected battery notification - Warns when a battery is not available to provide backup power.
Predictive failure notification - Provides early-warning fault analysis ensuring proactive component replacement.
Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries.

Specifications

Overview
Lead time	Usually in Stock

Main
Run time for load W information_stroke Min-max: 800-8000 W	5min 10s
Max. Capacity Used information_stroke	100 %
Main Input Voltage	208 V
Other Input Voltage	240 V
Main Output Voltage	208 V
Other Output Voltage	240 V
Kw Rating	8000 W
Rated power in VA	8000 VA
output connection type	4 IEC 60320 C13 3 IEC Jumpers 4 IEC 60320 C19
Output connector type	Hard Wire 3-wire (2PH + G) 1
Provided equipment	CD with software Documentation CD Installation guide Temperature Probe USB cable Warranty card Web/SNMP Management Card

Batteries & Runtime
Run Time	View Runtime Graph action_new_window
Efficiency	View Efficiency Graph action_new_window
Battery Type	Lead-Acid battery
Included Battery Modules	0
Typical recharge time	1.5 h
RBC Quantity	2
Battery Voltage	+/-192 V (split battery referenced to neutral)
Battery Charge Power (Watts)	1136 W rated
Battery Life	3…5 year(s)
Replacement battery	APCRBC140 action_new_window
Extendable Run Time	1

General
Topology	Double Conversion Online
product web sub-family	High density
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No

Physical
color	Black
Height	17.01 in (43.2 cm)
Width	10.35 in (26.3 cm)
Depth	28.15 in (71.5 cm)
Net Weight	245.99 lb(US) (111.58 kg)
Mounting Location	Front
Mounting preference	No preference
Mounting Mode	Rack-mounted with kit
Two post mountable	0
USB compatible	Yes

Input
Input Frequency	40 - 70 Hz auto-sensing
Number of input connectors	1 Hard Wire 3-wire (2PH + G)
Efficiency at full load	100...275 V adjustable (half load)

Output
Maximum configurable power in VA	8000 VA
Max Configurable Power (Watts)	8000 W
Output Frequency (sync to mains)	50/60 Hz +/- 3 Hz sync to mains
Wave type	Sine wave
Harmonic distortion	Less than 2%
Crest factor	3 : 1
Bypass type	Internal Bypass (Automatic and Manual)

Conformance
Product Certifications	ENERGY STAR V2.0 (USA) FCC part 15 class A UL 1778

Environmental
Ambient Air Temperature for Operation	32…104 °F (0…40 °C)
Relative Humidity	0…95 % non-condensing
Operating altitude	0...10000 ft
Ambient Air Temperature for Storage	5…113 °F (-15…45 °C)
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0…50000 ft (0.00…15240.00 m)
Acoustic level	55 dBA
heat dissipation	1712 Btu/h
IP degree of protection	IP20

Communications & Management
Free slots	1
Pre-Installed SmartSlot™ Cards	Network management card 3 with environmental monitoring
Alarm	Audible and visible alarms : prioritized by severity
Emergency Power Off (EPO)	Yes

Surge Protection and Filtering
Surge energy rating	480 J

Ordering and shipping details
GTIN	731304313106

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	18.15 in (46.1 cm)
Package 1 Width	39.37 in (100 cm)
Package 1 Length	23.62 in (60 cm)
Package 1 Weight	279.00 lb(US) (126.55 kg)

Contractual warranty
Warranty	3 years repair or replace (excluding battery) and 2 years for battery
