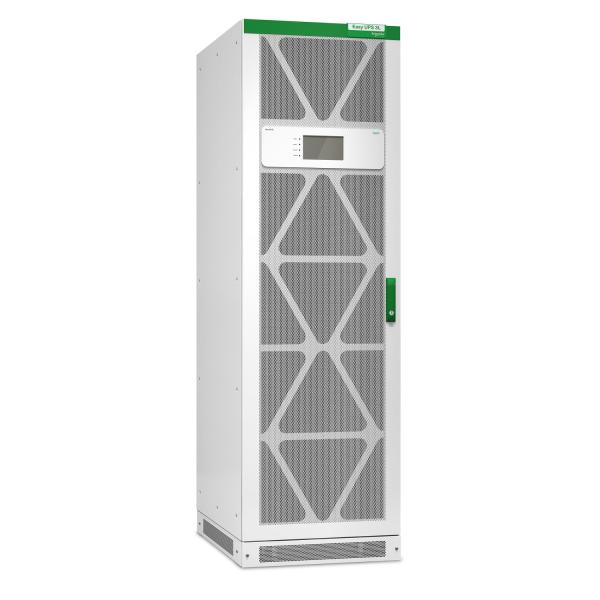

    APC Easy UPS 3L 300kVA 300kW 400V 3:3 UPS With USB RS232 SmartSlot

    Ask Lasest Price
    Brand Name : APC
    Model Number : E3LUPS300KHS
    Certification : CE EAC RCM
    Payment Terms : L/C, D/A, D/P, T/T
    • Product Details
    • Company Profile

    APC Easy UPS 3L 300kVA 300kW 400V 3:3 UPS With USB RS232 SmartSlot

    Features

    The Schneider Electric Easy UPS 3L, part of the 3 phase Easy UPS range, is a easy-to-configure, easy-to-use, and easy-to-service 250-600 kVA 3-phase UPS that delivers high availability and predictability to medium and large commercial and industrial applications. Its fault-tolerant design streamlines installation and service, its compact footprint saves valuable real estate, and its up to 96% efficiency brings predictability to your utility costs. With its exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs, the EcoStruxure connected Easy UPS 3L is the easy choice for business continuity on your shop floor or in your electrical room. Start-up service is included to optimize your system’s performance, quality, and safety.

    Benefits

    Convenience
    • Easy Loop Test - Verifies UPS performance before you connect your load, without the need for a load bank.
    • Easy to install fast - Quickly roll the compact and lightweight UPS into position.
    • Intuitive user interface - The intuitive graphical user interface allows for easy system configuration.
    • ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
    • Front-access servicing - Simplifies installation and UPS maintenance while minimizing space requirements.
    • Straightforward installation - Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
    Protection
    • Optional SNMP Card - When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
    • Replaceable dust filters - protect the UPS in harsh environments.
    • Parallel capability - Multiple units can be placed in parallel to meet power capacity and redundancy requirements
    • Wide Input Voltage Window - Saves your battery power for when you really need it - during power cuts!

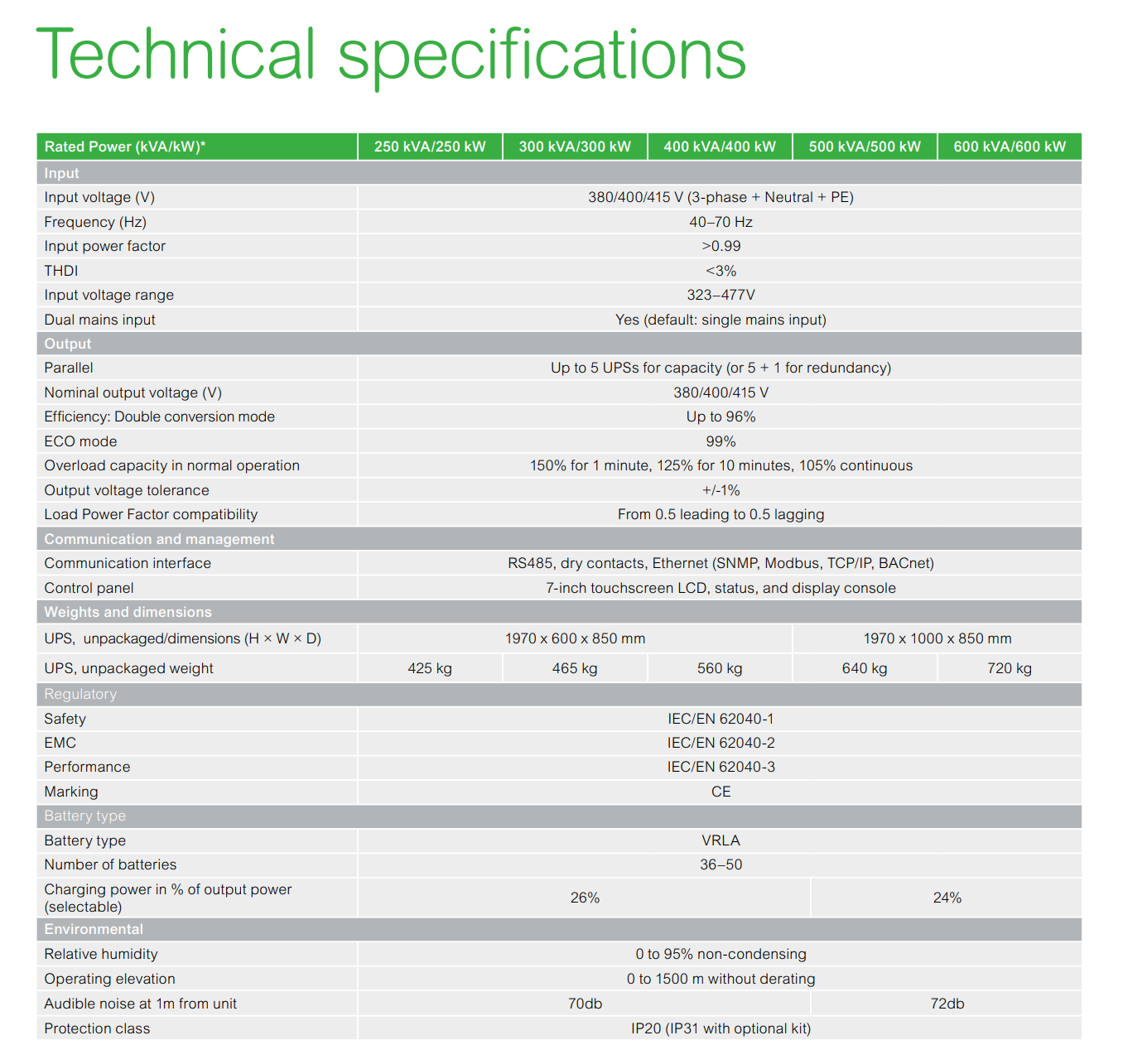

    Specifications


    Overview
    PresentationEasy-to-configure, easy-to-use and easy-to-service 300 kVA 3 phase UPS with an exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs. The EcoStruxure connected Schneider Electric Easy UPS 3L is the easy choice for business continuity on your shop floor or in your electrical room. Includes 5x8 start-up service.
    Lead timeSpecial Order - Call for Quoted Lead Times

    Main
    Main Input Voltage400 V 3 phases
    Other Input Voltage380 V
    415 V
    Main Output Voltage400 V 3 phases
    Other Output Voltage380 V
    415 V
    Rated power in W300 kW
    Rated power in VA300 kVA
    Provided equipmentDust filter
    Installation manual
    Start-up service

    Batteries & Runtime
    EfficiencyView Efficiency Graph
    action_new_window
    Battery typeExternal battery system
    Battery voltage+/- 216...+/- 300 V
    Maximum short-circuit current35 kA
    Discharge battery voltage+/- 172.8...+/- 240 V

    Physical
    ColourWhite (RAL 9003)
    height197 cm
    Width60 cm
    Depth85 cm
    Net weight449 kg
    USB compatibleYes

    Input
    Maximum input current540 A
    Max short time withstand current35 kA
    Input harmonic distortionLess than 3 % for full load
    Load power factor0.5 leading to 0.5 lagging without derating
    Input voltage limits323...477 V
    Network frequency40...70 Hz

    Output
    Maximum configurable power in VA300 kVA
    Maximum configurable power in W300 kW
    Output frequency50 Hz sync to mains
    60 Hz sync to mains
    Output harmonic distortion< 2% linear load and < 4% non-linear load
    Output overload operation10 minutes at 125% and 60 seconds at 150%
    UPS typeDouble conversion online

    Conformance
    product certificationsCE
    EAC
    RCM

    Environmental
    ambient air temperature for operation0…30 °C
    Relative humidity0…95 % non-condensing
    Operating altitude0...4921 ft
    Ambient air temperature for storage-25…55 °C
    Storage Relative Humidity0…95 % non-condensing
    Storage altitude0.00…14999.82 m
    Acoustic level70 dB
    heat dissipation59386 Btu/h
    IP degree of protectionIP20

    Communications & Management
    control panelTouch screen LCD user interface

    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height2117 mm
    Package 1 Width1000 mm
    Package 1 Length800 mm
    Package 1 Weight503 kg

    Contractual warranty
    Warranty1 year on-site repair or replace with factory authorized Start-Up
