    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups

    Ask Lasest Price
    Brand Name : Visench
    Model Number : Visench APlus 50kw Power Module
    Price : $1,296.00 - $6,669.00/pieces
    • Product Details
    • Company Profile

    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups

    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    Product name
    APlus(50kw power module)
    Rated Capacity
    300kva-500kva
    Power Factor
    0.99
    Input Voltage
    3 x 380/400/415 VAC (3Ph+N)
    Frequency
    50/60Hz
    Output Voltage
    3 x 380/400/415 VAC (3Ph+N)
    Temperature Compensation
    Yes
    Battery Type
    External Battery
    PHASE
    3-phase in / 3-phase out
    Harmonic Distortion
    < 4% @ 100% load
    Operating Temperature
    0~40°C
    Efficiency
    96.00%
    Frequency Range
    40Hz~70Hz
    Relative Humidity
    0~95% non-condensing
    Altitude*
    <1000m for Nominal power
    Size(mm)
    850 x600x2000
    Weight(Kgs)
    490/545/654/932/1020
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups

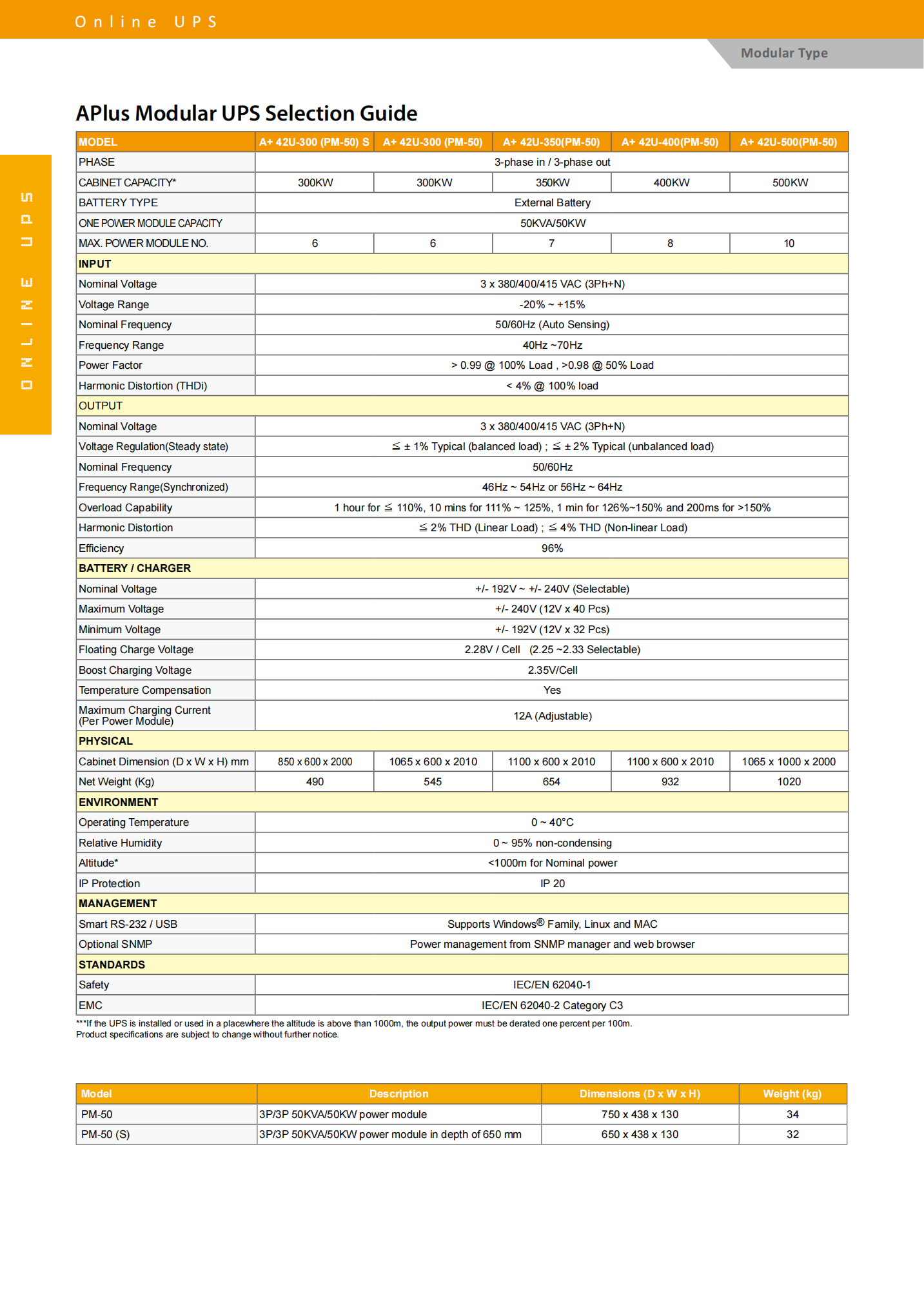

    MODEL
    A+42U-300(PM-50)S
    A+42U-300(PM-50)
    A+42U-350(PM-50)
    A+420-400(PM-50)
    A+42U-500(PM-50)
    PHASE
    3-phase in/3-phase out




    CABINET CAPACITY*
    300KW
    300KW
    350KW
    400KW
    500KW
    BATTERY TYPE
    Fxfomal Battery




    ONE POWER MODULE CAPACITY
    50KVA/50KW




    MAX.POWER MODULE NO
    6
    6
    7
    8
    10
    PHYSICAL
    Cabinet Dimension (D xW x H)mm
    850x600x 2000
    1065x600×2010
    1100x600x2010
    1100x600x2010
    1065x1000x2000
    Net Weight (Kg)
    490
    545
    654
    932
    1020
    INPUT
    Nominal Votage
    3x380/400/415 VAC (3Ph+N)
    Voltage Range
    -20% ~+15%
    Nominad Frequency
    50160Hz(Auto Sensing)
    Fneguency Range
    40Hz~70Hz
    Power Factor
    >0.99 100%Load,>0.98 @50%Load
    Harmonic Distortion (THDi)
    <4%@100%load
    OUTPUT

    Nominal Votage
    3x380/4001415 VAC(3Ph+N)
    Valtage Regulation(Steady state)
    ≤±1%Typical (balanced load);≤±2%Typlcal (unbalanced laad)
    Nominad Frequency
    50V60Hz
    Frequency Range(Synchronized)
    46Hz~54Hz or 56Hz~64Hz
    Overdrload Capability
    hour for ≤110%,10 mins tor 111%~125%,1 min for 126%~150 and 200ms tor>150%
    Harmonic Distortion
    ≤2%THD(Linear Load);≤4%THD(Non-linear Load)
    Eficiency
    96%
    BATTERY/CHARGER

    Nominal Valtage
    +/_192V~-240V (Selectabe)
    Maximum Voltage
    +/_240V (12Vx 40 Pcs)
    Minimum Voitage
    +/_192V (12Vx32 Pcs)
    Floating Charge Vltage
    2.28V/Cell(2.25~2.33 Selectable)
    Boost Charging Voltage
    2.35W/Cell
    Temperature Compensation
    Yes
    Maximum Charging Current (Per Power Module)
    12A(Adjustable)
    ENVIRONMENT

    Operating Temperature
    0~40℃
    Relative Humidi
    0~95%non-condensing
    Altitude*
    <1000m tor Nominal Power
    IP Protection
    IP 20
    MANAGEMENT

    Smart RS-232/USB
    Supports Windows Family.Linux and MAC
    Optional SNMP
    Power management from SNMP manager and web browser
    STANDARDS

    Safety
    IEC/EN 62040-1
    EMC
    IEC/EN 62040-2 Category C3
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    COMPANY PROFILE:
    Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also,our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
    We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
    As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
    Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.

    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    APlus 50kw Power Module OEM 3 Phase UPS 50KVA 300KVA 350KVA 400KVA 500KVA Online Ups
    1. who are we?
    We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU

    4. why should you buy from us not from other suppliers?
    Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
    Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
