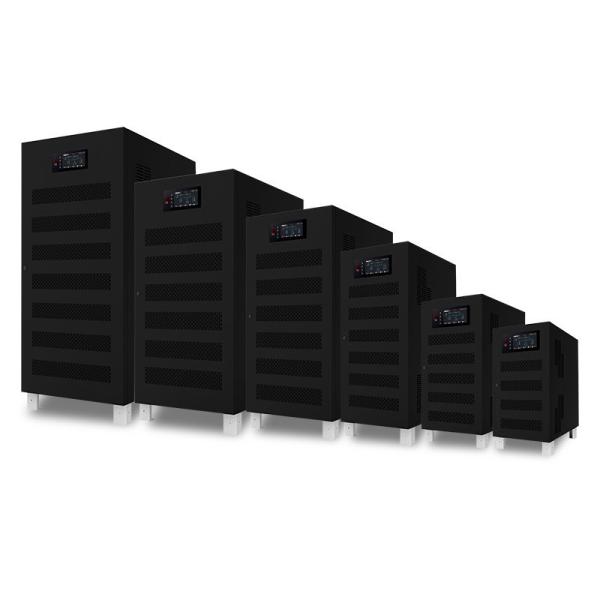

Visench Giant ll Industrial OEM UPS Power Supply 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA

Ask Lasest Price
Brand Name :	Visench
Model Number :	Visench Giant 3p 3p
Price :	$1,169.00 - $27,771.00/pieces

Add to Cart

Product Details
Company Profile

Visench Giant ll Industrial OEM UPS Power Supply 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA

Product name	Giant 3p3p
Rated Capacity	10kva-500kva
Power Factor	0.9, customized up to 1.0
Input Voltage	380VAC/400VACI415VAC
Frequency	50Hz±10%
Output Voltage	380VAC/400VACI415VAC
TVss	40kA (optional
Overload Capability	110%continuous running;125% for 10min
Rectifier Type	6 pulse
Input Voltage Range	285VAC~475VAC
Batery voltage	384 VDC (Adjustable)
IP Protection	IP31 (default), IP42 (optional)
Altitude	1000m
Storage Temperature	（—）25°C~55°C
Operating Temperature	0~ 50°C
Size(mm)	656 x 405 x 817
Weight(Kgs)	120/145/193/278/365/471

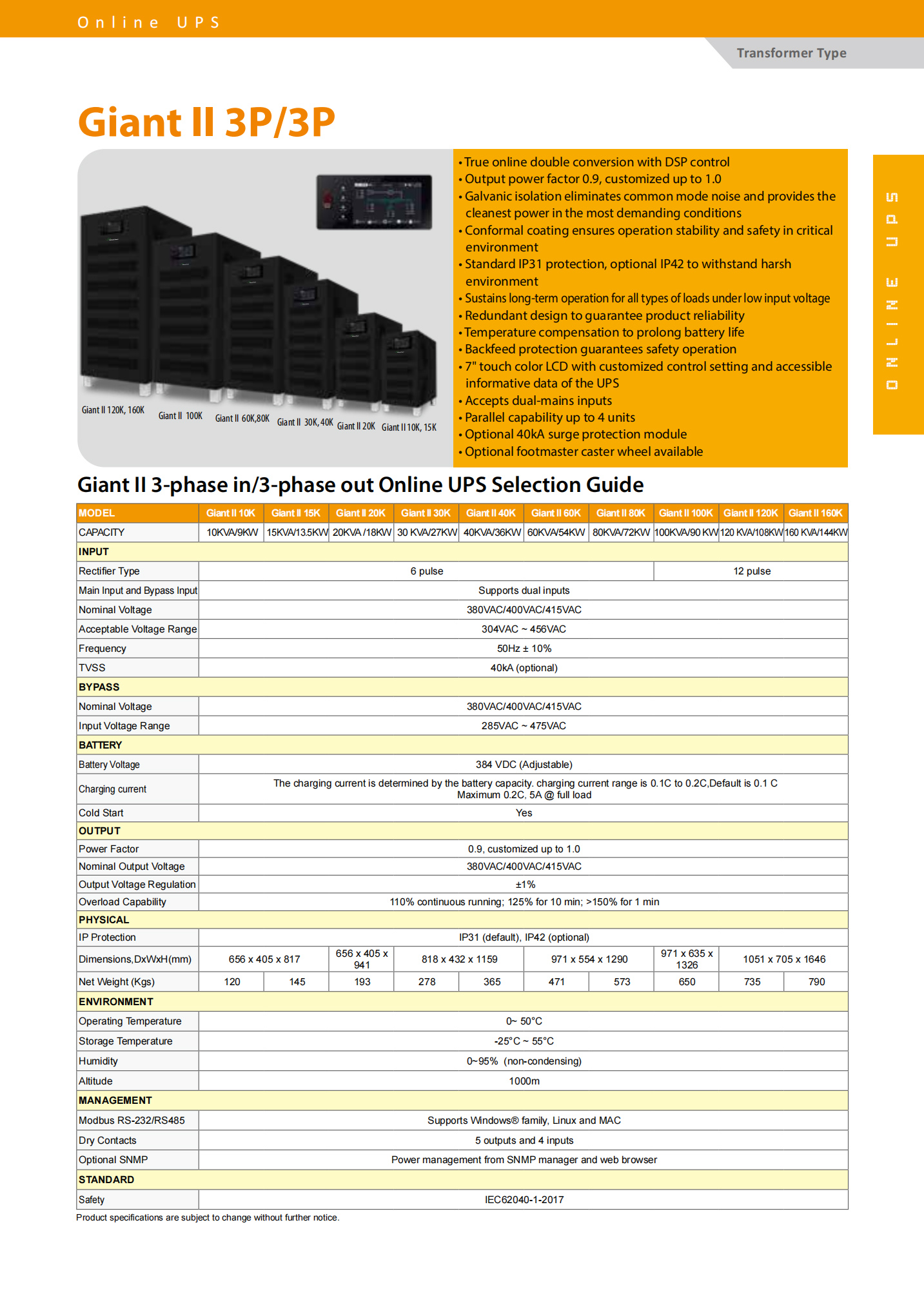

MODEL	Giant II 15K	Giant II 30K	Giant II 60K	Giant II 100K	Giant II 160K
CAPACITY	15KVA/13.5KW	30 KVA/27KW	60KVA/54KW	100KVA/90KW	160KVA/144KW
INPUT
Rectifier Type	6 pulse					12 pulse
Main Input and Bypass Input	Supports dual inputs
Nominal Voltage	380VAC/400VAC/415VAC
Acceptable Voltage Range	304VAC～456VAC
Frequency	50Hz±10%
TVSS	40kA(optional)
BYPASS
Nominal Voltage	380VAC/400VAC/415VAC
Input Voltage Range	285VAC~475VAC
BATTERY
Battery Voltage	384 VDC(Adjustable)
Charging curent	The charging current is determined by the battery capacity.charging current range is 0.1C to 0.2C,Default is 0.1 C Maximum 0.2C,5A @full load
Cold Start	Yes
OUTPUT
Power Factor	0.9,customized up to 1.0
Nominal Output Voltage	380VAC/400VAC/415VAC
Output Voltage Regulation	±1%
Overload Capability	110%continuous running;125%for 10 min;>150%for 1 min
PHYSICAL
IP Protection	IP31 (default),IP42 (optional)
Dimensions,DxWxH(mm)	656x405x817	656x405x941	818x432x1159	971x554x1290	1051x705x1646
Net Weight (Kgs)	145	278	471	650	790
ENVIRONMENT
Operating Temperature	0~50℃
Storage Temperature	25°℃~55℃
Humidity	0~95%(non-condensing)
Altitude	1000m
MANAGEMENT
Modbus RS-232/RS485	Supports Windows@family,Linux and MAC
Dry Contacts	5 outputs and 4 inputs
Optional SNMP	Power management from SNMP manager and web browser
STANDARD
Safety	EC62040-1-2017

COMPANY PROFILE:

Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.

We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.

As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.

Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.

1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.

2. What is the warranty?
We support 1 years warranty.

3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.

4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.

5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
