Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS

    Buy cheap Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS from wholesalers

    Buy cheap Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS from wholesalers
    • Buy cheap Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS from wholesalers
    • Buy cheap Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS from wholesalers
    • Buy cheap Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS from wholesalers
    • Buy cheap Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS from wholesalers
    • Buy cheap Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS from wholesalers
    • Buy cheap Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS from wholesalers

    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS

    Ask Lasest Price
    Brand Name : Visench
    Model Number : Visench Galleon II Rack
    Price : $999.00 - $2,621.00/pieces
    • Product Details
    • Company Profile

    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS

    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS

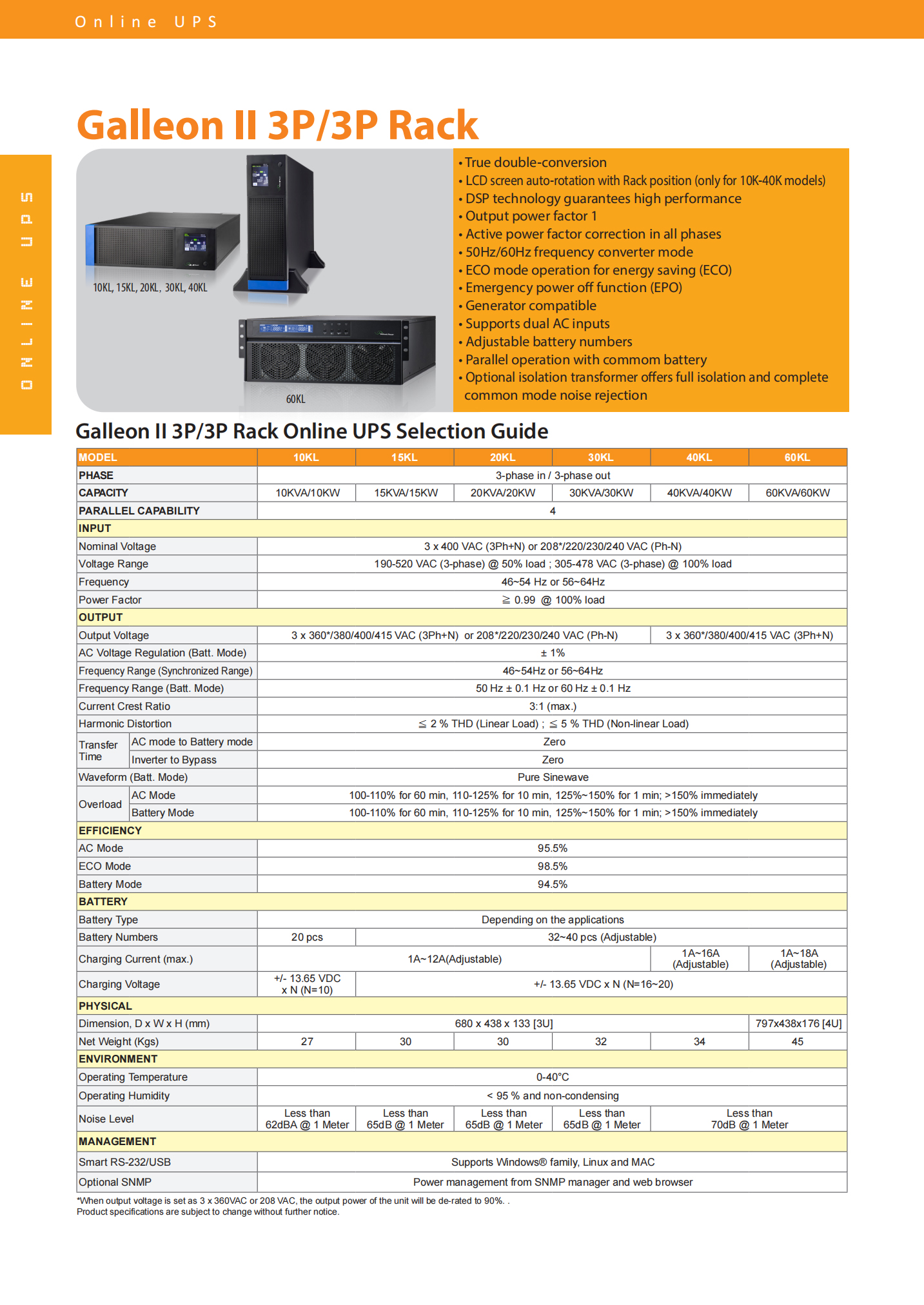

    MODEL
    10KL
    15KL
    20KL
    30KL
    40KL
    60KL
    PHASE
    3-phase in/3-phase out
    CAPACITY
    10KVA/10KW
    15KVA/15KW
    20KVA/20KW
    30KVA/30KW
    40KVA/40KW
    60KVA/6DKW
    PARALLEL CAPABILITY
    4
    INPUT
    Nominal Voltage
    3×400 VAC (3Ph+N)or 208*220/230/240 VAC (Ph-N)
    Voltage Range
    190-520 VAC(3-phase)@50%load;305-478 VAC(3-phase)@100%load
    Frequency
    48~54 Hz or 56~84Hz
    Power Factor
    ≥0.90 @100%load
    OUTPUT
    Output Voltage
    3x380Y3801400/415 VAC(3Ph+N)or 208*220/230/240 VAC (Ph-N)
    3x380Y380/400/415 VAC(3Ph+N)
    AC Voltage Regulation (Batt.Mode)
    ±1%
    Frequency Range (Synchranized Range)
    46~54Hz or 56~64Hz
    Frequency Range (Batt.Mode)
    50 Hz±0.1 Hzor60 Hz±0.1 Hz
    Current Crest Ratio
    3:1 (max.)
    Harmonic Distortion
    ≤2%THD(Linear Load):≤5%THD (Non-linear Load
    Transfer Time
    AC mode to Battery mode
    Zero
    Invener to Bypass
    Zero
    Waveform (Batt.Mode)
    Pure Sinewave
    Overload
    AC Mode
    100-110%for 60 min,110-125%for 10 min,125%~150%for 1 min;>150%immediately
    Battery Mode
    100-110%for 60 min,110-125%for 10 min,125%~150%for 1 min;>150%immediately
    EFFICIENCY
    AC Mode
    95.5%
    ECO Mode
    98.5%
    Battery Mode
    94.5%
    BATTERY
    Battery Type
    Depending on the applications
    Battery Numbers
    20 pcs
    32~40 pcs(Adjustable)
    Charging Current (max.)
    1A~12A(Adjustable)
    1A-10A (Adjustable)
    1A~18A (Adjustable)
    Charging Voltage
    +1-13.65 VDC x N (N=10)
    +113.85 VDCxN (N=16~20)
    PHYSICAL
    Dimension,DxWxH(mm)
    880x438x133(3U)
    797x438x176(4U)
    Net Weight (Kgs)
    26
    28
    28
    29
    40
    45
    ENVIRONMENT
    Operating Temperature
    0-40℃
    Operating Humidity
    <95% and non-condensing
    Noise Level
    Less than 62dBA @1Meter
    Less than 65dB @1 Meter
    Less than 65dB @1 Meter
    Less than 65dB @1 Meter
    Less than 70dB @1 Meter
    MANAGEMENT
    Smart RS-232/USB
    Supports WindowsO family.Linux and MAC
    Optional SNMP
    Power management from SNMP manager and web browser
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Product name
    Galleon II 3P3P Rack
    Rated Capacity
    10KVA-60KVA
    Power Factor
    0.99
    Input Voltage
    208*122012301240 VAC(Ph-N)
    Frequency
    46~54 Hz or 56~64Hz
    Output Voltage
    3 x 360*/380/4001415 VAC(3Ph+N)or 208*12201230/240 VAC (Ph-N)
    Waveform
    Pure Sine wave
    Battery Type
    Depending on the applications
    PHASE
    3-phase in/ 3-phase out
    Harmonic Distortion
    ≤ 2 % THD (Linear Load) ; ≤ 5 % THD (Non-inear Load)
    Current Crest Ratio
    3:1(max.)
    Battery Mode
    94.50%
    Frequency Range
    46~54Hz or 56~64Hz
    Inverter to Bypass
    Zero
    Operating Temperature
    0-40°C
    Size(mm)
    680 x 438 x 133
    Weight(Kgs)
    27/30/32/34/45
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    Visench Galleon II 3 Phase Rackmount Ups 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA Online UPS
    1. who are we?
    We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU

    4. why should you buy from us not from other suppliers?
    Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
    Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
